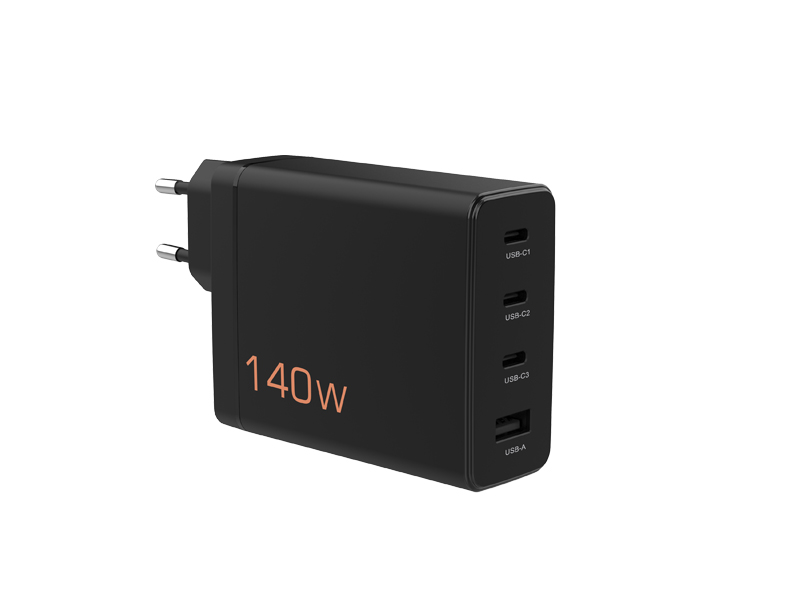

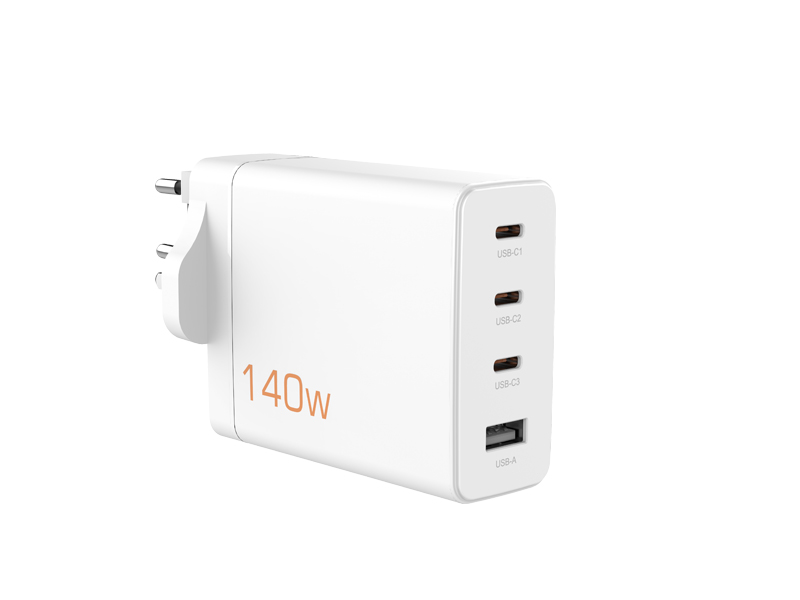

140W Wall Charger
Leading technology, faster and safer charging technology, small size, light weight, high operating efficiency; easily meet the charging needs of mobile smart devices.
1.Three USB-C+USB-A,output power:140W
2.Fast charging speed
3.GaNFast PD certification
4.Global Multiple Safety Certification
5.Compact & Portable
- SPECIFICATIONS
Type:ASGaN17
Typical output:
USB C1/C2/C3：5V 3A/9V 3A/15 V 3A/20V 5A/28V 5A
USB A：5V 3A/9V 2A/12V 1.5A
USB C1/C2/C3+A：PD100W+QC18W
USB C1/C3+C2+A：PD65W+PD45W+QC18W
USB C1+C3+A：PD65W+PD30W+QC18W
USB C1+C2+C3+A：PD60W+PD20W+PD30W+QC18W
Rated input voltage:100-240Vac
Input voltage range：90-264Vac
Input frequency:50/60Hz
Input current:1.2A(rms)max@90Vac
Incrush current:30A max@240 Vac
No load power consumption:0.3W max
Energy class:VI
Safety standard：IEC/UL/EN62368(GB4943)
EMC standard：EN55032，EN55035,EN61000
Part 15 Subpart B
CISPR 32,CISPR24
- WORKING ENVIRONMENT
Operation temperature:-10℃～25℃
Storage temperature:-20℃～70℃
Humidity:5%～95%RH
